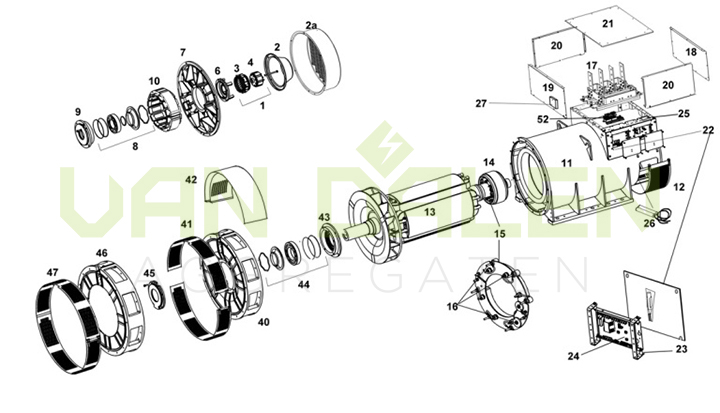

Desription |
Common parts |
Quantity |
|
|
1 |
Complete P.M.G. upfit kit |
45-0119A |
1 |
|
|
2 |
P.M.G. cover (cover included in above kit) |
760-10562 |
1 |
|
|
2a |
N.D.E. air inlet cover G |
760-11279 |
1 |
|
|
|
N.D.E. air inlet cover G (marine) |
760-10965 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. roto/stator repair kit |
45-1082 |
1 |
|
|
5 |
P.M.G. crown (if fitted) |
not applicable) |
N/A |
| |
6 |
N.D.E. bearing cap to |
760-10823 |
1 |
|
|
7 |
N.D.E. bracket (A - F) |
760-10819 |
1 |
| |
|
N.D.E. bracket (G) |
760-11205 |
1 |
|
|
8 |
N.D.E. bearing kit |
45-0336 |
1 |
| |
9 |
N.D.E. bearing cartridge |
760-10821 |
1 |
|
|
10 |
Exciter stator 75 mm (A - F) |
366-40800 |
1 |
| |
|
Exciter stator 100 mm (G) |
760-1151 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
| |
12 |
N.D.E. air inlet cover (industrial) |
760-11274 |
1 |
|
|
|
N.D.E. air inlet cover (marine-louvered) |
366-21200 |
1 |
| |
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 75 mm (A - F) |
760-1186 |
1 |
| |
|
Exciter rotor 100 mm (G) |
760-1178 |
1 |
|
|
15 |
Rotating rectifier assy |
760-11216 |
1 |
| |
16 |
Diode FWD/REV & varistor kit |
RSK-6001 |
1 |
|
|
17 |
Main terminal board |
QMSN |
1 |
| |
18 |
Terminal box endpanel N.D.E. |
760-11185 |
1 |
|
|
19 |
Terminal box endpanel D.E. |
760-11185 |
1 |
| |
20 |
Terminal box side panel |
760-11186 |
2 |
|
|
21 |
Terminal box LID |
760-10663 |
1 |
| |
22 |
A.V.R. cover plate (access) |
450-15254 |
1 |
|
|
|
A.V.R. cover plate (blanking) |
450-14310 |
1 |
| |
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
| |
|
A.V.R. MX 341 TBA |
|
TBA |
|
|
|
A.V.R. MX321 |
E000-23212/1P |
1 |
| |
|
A.V.R. MX321 TBA |
|
TBA |
|
|
25 |
Auxiliary terminal board |
450-15489 |
2 |
| |
26 |
Heater 110-125 Volt |
45-0324 |
1 |
|
|
|
Heater 220-260 Volt |
45-0325 |
1 |
| |
|
Heater 110-125 Volt (G core) |
45-1047 |
1 |
|
|
|
Heater 220-260 Volt (G core) |
45-1048 |
1 |
| |
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
40 |
D.E. bracket A - E |
760-11160 |
1 |
| |
|
D.E. bracket F - G |
760-10912 |
1 |
|
|
41 |
D.E. bracket screen top (industrial) |
760-11392 |
1 |
|
|
D.E. bracket screen bottom |
766-10930 |
1 |
|
|
42 |
Louvre kit A - F |
45-1053 |
1 |
| |
|
Louvre kit G |
45-1054 |
1 |
|
|
43 |
D.E. bearing cartridge A - E |
760-10829 |
1 |
| |
|
D.E. bearing cartridge F - G |
760-10923 |
1 |
|
|
44 |
D.E. bearing kit A - E |
45-0335 |
1 |
| |
|
D.E. bearing kit F - G |
45-0425 |
1 |
|
|
45 |
D.E. bearing cap A - E |
760-10831 |
1 |
| |
|
D.E. bearing cap F - G |
760-10924 |
1 |
|
|
46 |
2 BRG adaptor kit (SAE 00) A - E only |
45-0715 |
1 |
| |
|
2 BRG adaptor kit (SAE 0) A - E only |
45-0716 |
1 |
|
|
|
2 BRG adaptor kit (SAE 0) F - G only |
760-11420 |
1 |
| |
|
2 BRG adaptor kit (SAE 00) F - G only |
760-11421 |
1 |
|
|
47 |
D.E. cover screen (included in kits) |
Included in 46 |
1 |
| |
52 |
Isolation transformer 2 to 1 (up to 480V) |
450-42150 |
1 |
|
|
52 |
Isolation transformer 2.5 to 1 (500 to 600V) |
450-41650 |
1 |
| |
52 |
Isolation transformer 3 to 1 (601 to 720V) |
450-41750 |
1 |
