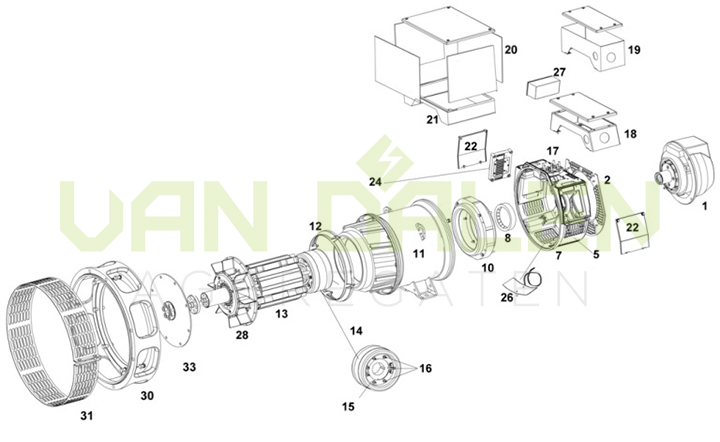

Desription |
Common parts |
Quantity |
| |
1 |
EBS unit (4 pole) |
45-1210 |
1 |
|
|
|
Module only for 4 pole above |
E000-14831 |
1 |
| |
|
EBS unit (2 pole) |
45-1212 |
1 |
|
|
|
EBS unit (Cummins PCC 1302 - 4 pole) |
45-1211 |
1 |
| |
|
Module only for PCC 4 pole above |
E000-14851 |
1 |
|
|
|
EBS unit (Cummins PCC 1302 - 2 pole) |
45-1213 |
1 |
| |
2 |
NDE cover for use with EBS |
191-10061 |
1 |
|
|
|
NDE cover for use without EBS (not shown) |
191-10045 |
1 |
| |
5 |
NDE endbracket bottom cover (D) |
190-10018 |
1 |
|
|
|
NDE endbracket bottom cover (E - K) |
191-10035 |
1 |
|
|
7 |
NDE endbracket (D) |
190-10025 |
1 |
|
|
|
NDE endbracket (E - K) |
191-10055 |
|
|
|
8 |
Bearing kit |
45-0866 |
1 |
|
|
10 |
Exciter stator 25 mm (D) |
190-1039 |
1 |
|
|
|
Exciter stator 30 mm (E) |
191-1067 |
1 |
|
|
|
Exciter stator 34 mm (F - G) |
191-1068 |
1 |
|
|
|
Exciter stator 38 mm (H - K) |
191-1069 |
|
|
|
11 |
Stator frame assy |
QMSN |
1 |
|
|
12 |
Air flow baffle |
191-10091 |
1 |
|
|
13 |
Rotor shaft assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 25 mm (D) |
190-1041 |
1 |
|
|
|
Exciter rotor 30 mm (E) |
191-1072 |
1 |
|
|
|
Exciter rotor 34 mm (F - G) |
191-1063 |
1 |
|
|
|
Exciter rotor 38 mm (H - K) |
191-1064 |
1 |
|
|
15 |
Rotating rectifier assy |
45-0427 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-1101 |
1 |
|
|
17 |
Terminal board |
191-10057 |
1 |
|
|
18 |
Standard terminal box kit (D) |
45-1165 |
1 |
|
|
18 |
Standard terminal box kit (E - K) |
45-1168 |
1 |
|
|
19 |
Tall terminal box kit |
45-1206 |
1 |
|
|
20 |
Large terminal box kit (D) |
45-1166 |
1 |
|
|
20 |
Large terminal box kit (E - K) C/W plinth |
45-1167 |
1 |
|
|
21 |
Terminal box plinth (D) |
45-1175 |
1 |
|
|
21 |
Terminal box plinth (E - K) |
45-1176 |
1 |
|
|
22 |
AVR cover (D) |
190-10027 |
2 |
|
|
22 |
AVR cover (E - K) |
191-10056 |
2 |
|
|
24 |
AVR AS480 UL approved only supplied |
E000-14808/1P |
1 |
|
|
26 |
Heater kit 230V |
45-1161 |
1 |
|
|
|
Heater kit 230V to include term box for retrofit |
A040G608 |
1 |
|
|
|
Heater kit 115V |
45-1162 |
1 |
|
|
|
Heater kit 115V to include term box for retrofit |
A040G612 |
1 |
|
|
|
Heater kit 24V |
45-1163 |
1 |
|
|
|
Heater kit 24V to include term box for retrofit |
A040G614 |
1 |
|
|
|
Heater kit 12V |
45-1164 |
1 |
|
|
|
Heater kit 12V to include term box for retrofit |
A040G618 |
1 |
|
|
27 |
Heater terminal box for retrofit not included |
45-1205 |
1 |
|
|
|
in heater kit (item 26) |
|
|
|
|
28 |
Fan 290 mm (D - G) |
191-10042 |
1 |
|
|
|
Fan 344 mm (H - K) |
191-10059 |
1 |
|
|
30 |
Adaptor kit SAE 2 |
45-1190 |
1 |
|
|
|
Adaptor kit SAE 3 |
45-1191 |
1 |
|
|
|
Adaptor kit SAE 4 (H, J, K) |
45-1192 |
1 |
|
|
|
Adaptor kit SAE 4 (spacer 28.5) |
45-1197 |
1 |
|
|
|
Adaptor kit SAE 5 |
45-1193 |
1 |
|
|
|
Adaptor kit SAE 5 (spacer 26 wide lister alpha) |
45-1195 |
1 |
|
|
|
Adaptor kit SAE 5 (spacer 51.5 wide lister
alpha) |
45-1196 |
1 |
|
|
|
Adaptor kit (aifo) |
45-1198 |
1 |
|
|
|
Adaptor kit (gm) |
45-1199 |
1 |
|
|
31 |
Adaptor screen included in kit |
See item 30 |
1 |
|
|
33 |
Coupling kit SAE 6.5 |
45-1170 |
1 |
|
|
|
Coupling kit SAE 7.5 |
45-1171 |
1 |
|
|
|
Coupling kit (GM adaptor up to G) |
45-1188 |
1 |
|
|
|
Coupling kit (GM adaptor H, J, K only) |
45-1189 |
1 |
|
|
|
Coupling kit SAE 7.5 (China H core only) |
45-1187 |
1 |
|
|
|
Coupling kit (Kubota) |
45-1204 |
1 |
|
|
|
Coupling kit SAE 8 |
45-1172 |
1 |
|
|
|
Coupling kit SAE 10 |
45-1173 |
1 |
|
|
|
Coupling kit SAE 11.5 |
45-1174 |
1 |
|
|
|
Coupling kit lister/alpha (use with 45-1195
only) |
45-1180 |
1 |
