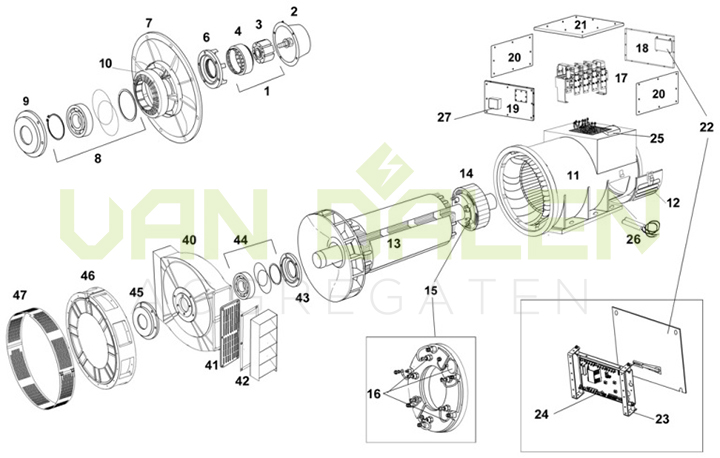

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit kit (to 10/05/01) |
45-0060A |
1 |
|
|
|
Complete P.M.G. upfit kit (from 10/05/01) |
45-0341A |
1 |
|
|
2 |
P.M.G. cover (cover included in above kit) |
760-10562 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
5 |
P.M.G. crown (it fitted) |
See no. 1 |
1 |
|
|
6 |
N.D.E. bearing cap (to 10/05/01) |
660-10071 |
1 |
|
|
|
N.D.E. bearing cap (from 10/05/01) |
660-10864 |
1 |
|
|
7 |
N.D.E. bracket (to 10/05/01) |
660-10064 |
1 |
|
|
|
N.D.E. bracket (from 10/05/01) |
660-10860 |
1 |
|
|
8 |
N.D.E. bearing kit (to 10/05/01) |
45-0295 |
1 |
|
|
|
N.D.E. bearing kit (from 10/05/98) |
45-0340 |
1 |
|
|
9 |
N.D.E. bearing cartridge (to 10/05/01) |
462-12920 |
1 |
|
|
|
N.D.E. bearing cartridge (from 10/05/01) |
660-10862 |
1 |
|
|
10 |
Exciter stator 75 mm |
366-40800 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
|
|
12 |
N.D.E. air inlet cover (industrial) |
660-11565 |
1 |
|
|
|
N.D.E. air inlet cover (marine) |
464-31600 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 75 mm |
660-1010 |
1 |
|
|
15 |
Rotating rectifier assy |
450-16025 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-6001 |
1 |
|
|
17 |
Main terminal board |
660-1005 |
1 |
|
|
18 |
Terminal box endpanel N.D.E. |
660-10653 |
1 |
|
19 |
Terminal box endpanel D.E. |
660-10652 |
1 |
|
|
20 |
Terminal box side panel |
660-10650 |
2 |
|
|
21 |
Terminal box LID |
660-10651 |
1 |
|
|
22 |
A.V.R. cover plate (access) |
450-15254 |
1 |
|
|
|
A.V.R. cover plate (blanking) |
450-14310 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL |
A040H491 |
1 |
|
|
|
A.V.R. MX321 |
E000-23212/1P |
1 |
|
|
|
A.V.R. MX321 TBA |
|
TBA |
|
|
25 |
Auxiliary terminal board |
003-14046 |
2 |
|
|
26 |
Heater 110-125 volt |
45-0373 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
TBA |
1 |
|
|
|
Heater kit 220-260 volt |
45-0374 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040G610 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
40 |
D.E. bracket (to 25/04/98) |
464-15630 |
1 |
|
|
|
D.E. bracket (frome 25/04/98) |
660-10868 |
1 |
|
|
41 |
D.E. bracket screen |
464-15650 |
2 |
|
|
42 |
D.E. louvre |
45-0659 |
2 |
|
|
43 |
D.E. bearing cartridge (to 25/04/98) |
464-15090 |
1 |
|
|
|
D.E. bearing cartridge (from 25/04/98) |
660-10870 |
1 |
|
|
44 |
D.E. bearing kit (to 25/04/98) |
45-0294 |
1 |
|
|
|
D.E. bearing kit (from 25/0/98) |
45-0339 |
1 |
|
|
45 |
D.E. bearing cap outer (to 25/04/98) |
660-10074 |
1 |
|
|
|
D.E. bearing cap outer (from 25/04/98) |
660-10872 |
1 |
|
|
46 |
2 brg adaptor kit (SAE 0) |
45-0683 |
1 |
|
|
|
2 brg adaptor kit (SAE 00) |
45-0682 |
1 |
|
|
D.E. cover screen (included in kits) |
included in 46 |
1 |
|
|
|
|
|
|
