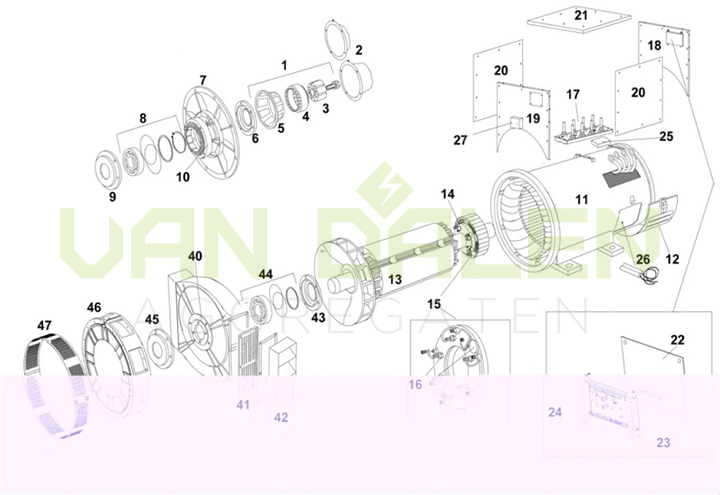

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit kit (to 18/08/00) |
45-0059A |
1 |
|
|
|
Complete P.M.G. upfit kit (from 18/08/00) |
45-0318A |
1 |
|
|
2 |
P.M.G. cover only included in kit 45-0059A |
450-13350 |
1 |
|
|
|
P.M.G. cover only included in kit 45-0318A |
410-10704 |
1 |
|
|
|
Non PMG cover (to 18/08/00) |
450-12590 |
1 |
|
|
|
Non PMG cover (from 18/08/00) |
410-10705 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
5 |
P.M.G. crown (it fitted) |
See no. 1 |
1 |
|
|
6 |
N.D.E. bearing cap (to 18/08/00) |
410-10268 |
1 |
|
|
7 |
N.D.E. bracket (to 02/00) |
410-10256 |
1 |
|
|
|
N.D.E. bracket (from 02/00) |
410-10703 |
1 |
|
|
8 |
N.D.E. bearing kit (to 18/08/00) |
45-0291 |
1 |
|
|
|
N.D.E. bearing kit (from 18/08/00) |
45-0320 |
1 |
|
|
9 |
N.D.E. bearing cartridge (to 18/08/00) |
458-12960 |
1 |
|
|
10 |
Exciter stator 50mm |
410-1052 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
|
|
12 |
N.D.E. air inlet cover (louvred) |
458-20200 |
1 |
|
|
|
N.D.E. air inlet cover (industrial) |
410-10799 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 50 mm (to 22/11/99) |
458-22800 |
1 |
|
|
|
Exciter rotor 50 mm (from 22/11/99) |
410-1194 |
1 |
|
|
15 |
Rotating rectifier assy |
450-16016 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-5001 |
1 |
|
|
17 |
Main terminal board |
410-10720 |
1 |
|
|
18 |
Terminal box endpanel N.D.E. (to 21/07/02) |
410-10494* |
1 |
|
|
|
Terminal box endpanel N.D.E. (from 21/07/02) |
410-10785 |
1 |
|
|
19 |
Terminal box endpanel D.E. (to 21/07/02) |
410-10495 |
1 |
|
|
|
Terminal box endpanel D.E. (from 21/07/02) |
410-10784 |
1 |
|
|
20 |
Terminal box side panel (to 21/07/98) |
410-10496 |
2 |
|
|
|
Terminal box side panel (from 21/07/98) |
410-10786 |
2 |
|
|
21 |
Terminal box LID (to 21/07/98) |
410-10173 |
1 |
|
|
|
Terminal box LID (from 21/07/98) |
410-10497 |
1 |
|
|
22 |
A.V.R. cover plate (to 21/07/02) |
410-10536 |
1 |
|
|
|
A.V.R. cover plate (frome 21/07/02) |
450-15254 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL |
A040H491 |
1 |
|
|
|
A.V.R. AS440 (Standard series 4) |
E000-24403/1P |
1 |
|
|
|
A.V.R. AS440 UL aprroved |
E000-24408/1P |
1 |
|
|
25 |
Auxiliary terminal board |
003-14027 |
2 |
|
|
26 |
Heater 110-125 volt |
45-0373 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
TBA |
1 |
|
|
|
Heater kit 220-260 volt |
45-0374 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040G610 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
40 |
D.E. bracket (to 12/09/04) |
458-11170 |
1 |
|
|
|
D.E. bracket (frome 12/09/04) |
410-10781 |
1 |
|
|
41 |
D.E. bracket screen |
410-10260 |
1 |
|
|
42 |
D.E. louvre |
45-0653 |
1 |
|
|
43 |
D.E. bearing cartridge (to 18/08/00) |
458-10130 |
1 |
|
|
|
D.E. bearing cartridge (from 18/08/00) |
410-10708 |
1 |
|
|
44 |
D.E. bearing kit (to 18/08/00) |
45-0290 |
1 |
|
|
|
D.E. bearing kit (from 18/08/00) |
45-0319 |
1 |
|
|
45 |
D.E. bearing cap outer (to 18/08/00) |
410-10269 |
1 |
|
|
|
D.E. bearing cap outer (from 18/08/00) |
458-10706 |
1 |
|
|
46 |
2 brg adaptor kit (SAE 0) |
45-0675 |
1 |
|
|
|
2 brg adaptor kit (SAE 0.5) |
45-0677 |
1 |
|
|
|
2 brg adaptor kit (SAE 1) |
45-0676 |
1 |
|
|
|
2 brg adaptor kit (DIN 1) |
45-0910 |
1 |
|
|
47 |
D.E. cover screen (included in kits) |
included in 46 |
2 |
|
|
|
|
|
|
|
|
|
* 410-10494 obsolete use 410-10785 + 45-0742 |
|
|
