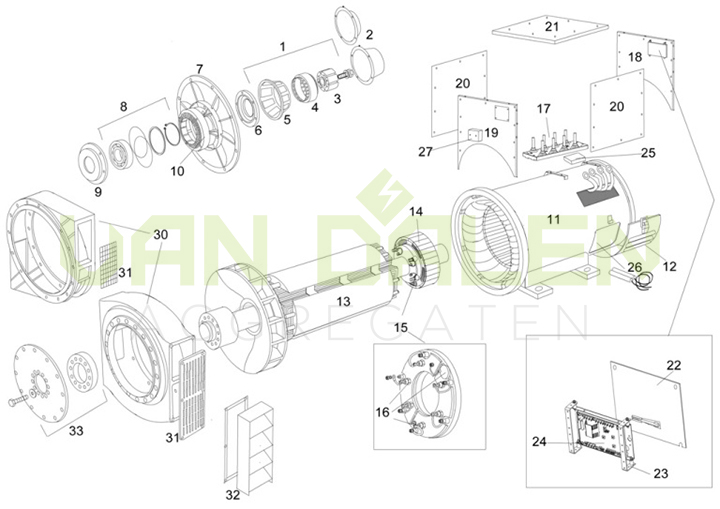

Desription |
Common parts |
Quantity |
| |
1 |
Complete P.M.G. upfit KIT (to 18/08/00) |
45-0059A |
1 |
|
|
|
Complete P.M.G. upfit KIT (from 18/08/00) |
45-0318A |
1 |
|
|
2 |
P.M.G. cover only included in kit 45-0059A |
450-13350 |
1 |
|
|
|
P.M.G. cover only included in kit 45-0318A |
410-10704 |
1 |
|
|
|
Non PMG cover (to 18/08/00) |
450-12590 |
1 |
|
|
|
Non PMG cover (from 18/08/00) |
410-10705 |
1 |
|
|
3 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
4 |
Current P.M.G. rotor/stator repair kit |
45-1082 |
1 |
|
|
5 |
P.M.G. crown (it fitted) |
See no. 1 |
1 |
|
|
6 |
N.D.E. bearing cap (to 18/08/00) |
410-10268 |
1 |
|
|
7 |
N.D.E. bracket (to 02/00) |
410-10256 |
1 |
|
|
|
N.D.E. bracket (from 02/00) |
410-10703 |
1 |
|
|
8 |
N.D.E. bearing kit (to 18/08/00) |
45-0291 |
1 |
|
|
|
N.D.E. bearing kit (from 18/08/00) |
45-0320 |
1 |
|
|
9 |
N.D.E. bearing cartridge (to 18/08/00) |
458-12960 |
1 |
|
|
10 |
Exciter Stator 50mm |
410-1052 |
1 |
|
|
11 |
Main stator frame assy |
QMSN |
1 |
|
|
12 |
N.D.E. air inlet cover (louvred) |
458-20200 |
1 |
|
|
|
N.D.E. air inlet cover (industrial) |
410-10799 |
1 |
|
|
13 |
Main rotor assy |
QMSN |
1 |
|
|
14 |
Exciter rotor 50 mm (to 22/11/99) |
458-22800 |
1 |
|
|
|
Exciter rotor 50 mm (from 22/11/99) |
410-1194 |
1 |
|
|
15 |
Rotating rectifier assy |
450-16016 |
1 |
|
|
16 |
Diode FWD/REV & varistor kit |
RSK-5001 |
1 |
|
|
17 |
Main terminal board |
410-10720 |
1 |
|
|
18 |
Terminal box endpanel N.D.E. (to 21/07/02) |
410-10494* |
1 |
|
|
|
Terminal box endpanel N.D.E. (from 21/07/02) |
410-10785 |
1 |
|
|
19 |
Terminal box endpanel D.E. (to 21/07/02) |
410-10495 |
1 |
|
|
|
Terminal box endpanel D.E. (from 21/07/02) |
410-10784 |
1 |
|
|
20 |
Terminal box side panel (to 21/07/98) |
410-10496 |
2 |
|
|
|
Terminal box side panel (from 21/07/98) |
410-10786 |
2 |
|
21 |
Terminal box LID (to 21/07/98) |
410-10173 |
1 |
|
|
|
Terminal box LID (from 21/07/98) |
410-10497 |
1 |
|
|
22 |
A.V.R. cover plate (to 21/07/02) |
410-10536 |
1 |
|
|
|
A.V.R. cover plate (from 21/07/02) |
450-15254 |
1 |
|
|
23 |
A.V.R. mounting bracket |
45-0742 |
1 |
|
|
24 |
A.V.R. MX341 (standard series 3) |
E000-23412/1P |
1 |
|
|
|
A.V.R. MX341 UL |
A040H491 |
1 |
|
|
|
A.V.R. AS440 (standard series 4) |
E000-24403/1P |
1 |
|
|
|
A.V.R. AS440 UL aprroved |
E000-24408/1P |
1 |
|
|
25 |
Auxiliary terminal board |
003-14027 |
2 |
|
|
26 |
Heater 110-125 volt |
45-0373 |
1 |
|
|
|
Heater kit 110-125 volt to include term box for
retrofit |
TBA |
1 |
|
|
|
Heater 220-260 volt |
45-0374 |
1 |
|
|
|
Heater kit 220-260 volt to include term box for
retrofit |
A040G610 |
1 |
|
|
27 |
Terminal box for heaters |
45-0024 |
1 |
|
|
30 |
D.E. adaptor kit (SAE 0) |
45-0663 |
1 |
|
|
|
D.E. adaptor kit (SAE 0.5) |
45-0664 |
1 |
|
|
|
D.E. adaptor kit (SAE 1) |
45-0665 |
1 |
|
|
|
D.E. adaptor kit (SAE 2) |
45-0721 |
1 |
|
|
|
D.E. adaptor kit (SAE 3) |
45-0753 |
1 |
|
|
|
D.E. adaptor kit (SAE1 round) |
45-0913 |
1 |
|
|
31 |
D.E. screen (included in adaptor kits) |
410-10762 |
2 |
|
|
32 |
D.E. louvre (SAE 0.5 & 1) |
45-0651 |
1 |
|
|
|
D.E. louvre (SAE 0) |
45-0652 |
1 |
|
|
33 |
Coupling kit SAE 11.5 |
45-0776 |
1 |
|
|
|
Coupling kit SAE 14 |
45-0777 |
1 |
|
|
|
Coupling kit SAE 18 |
45-0778 |
1 |
|
|
|
Coupling kit SAE 17.75 |
45-0779 |
1 |
|
|
|
|
|
|
|
|
|
* 410-10494 obsolete use 410-1785 + 45-0742 |
|
|
